The ankle-brachial index (ABI) is the ratio of systolic blood pressure (BP) in the ankle to that in the arm. With the patient recumbent, the ankle blood pressure is measured in both the dorsalis pedis and posterior tibial artery, and the arm blood pressure is measured in both arms at the brachial artery. The index is calculated for each lower extremity by dividing the higher of the dorsalis pedis or posterior tibial pressure in that extremity by the higher of the 2 brachial artery systolic pressures. This ratio is normally > 1. A Doppler probe may be used to measure blood pressure at the ankle if the pedal pulses are not easily palpable.

A low (≤ 0.90) ankle-brachial index suggests peripheral arterial disease, which can be classified as mild (index 0.71 to 0.90), moderate (0.41 to 0.70), or severe (≤ 0.40). A high index (> 1.30) may indicate noncompressible leg vessels, as may occur in conditions that are associated with blood vessel calcification, for example, diabetes, end-stage renal disease, and Mönckeberg arteriosclerosis. A high index may suggest that further vascular studies are needed (toe-brachial index or arterial duplex studies).

Blood pressure and heart rate are measured with the patient supine, seated, and standing; a 1-minute interval is needed between each change in position. Orthostatic hypotension is typically defined as a decrease in systolic blood pressure of > 20 mm Hg or diastolic blood pressure > 10 mm Hg and a change in heart rate of > 20 beats per minute within 3 minutes of standing; the difference in blood pressure tends to be a little greater in older patients due to loss of vascular elasticity. The patient should be asked about symptoms of cerebral hypoperfusion, including lightheadedness or vision changes. However, the sensitivity of these measurements to detect hypovolemia (eg, secondary to blood loss) is low.

Causes of abnormal orthostatic vital signs include hypovolemia, baroreflex dysfunction (eg, due to neurodegenerative disorders such as autonomic neuropathies, peripheral neuropathies, older age) and, less commonly, valvular disease (eg, aortic stenosis), heart failure, or arrhythmias. Certain medications (eg, diuretics, vasodilators) can also contribute to abnormal orthostatic vital signs (2).

Normally during inspiration, systolic arterial blood pressure can decrease as much as 10 mm Hg, and pulse rate increases to compensate. An exaggeration of this normal response with a greater decrease in systolic blood pressure or weakening of the pulse during inspiration is considered pulsus paradoxus. Pulsus paradoxus occurs in

• Cardiac tamponade (commonly)

• Constrictive pericarditis

• Restrictive cardiomyopathy

• Chronic obstructive pulmonary disease (occasionally)

• Severe asthma

• Severe pulmonary embolism

• Hypovolemic shock (rarely)

Blood pressure decreases during inspiration because negative intrathoracic pressure increases venous return and hence right ventricular (RV) filling; as a result, the interventricular septum bulges slightly into the left ventricular (LV) outflow tract, decreasing cardiac output and thus BP. This mechanism (and the drop in systolic BP) is exaggerated in disorders that cause high negative intrathoracic pressure (eg, asthma) or that restrict RV filling (eg, cardiac tamponade, cardiomyopathy) or outflow (eg, pulmonary embolism).

Pulsus paradoxus is quantified by inflating a BP cuff to just above systolic BP and deflating it very slowly (eg, ≤ 2 mm Hg/heartbeat). The pressure is noted when Korotkoff sounds are first heard (at first, only during expiration) and when Korotkoff sounds are heard continuously. The difference between the pressures is the “amount” of pulsus paradoxus.

1. 1. Lena A, Ebner N, Anker MS: Cardiac cachexia. Eur Heart J Suppl 21 (Suppl L): L24–L27, 2019.

2. 2. Wieling W, Kaufmann H, Claydon VE, et al: Diagnosis and treatment of orthostatic hypotension. Lancet Neurol 21(8):735–746, 2022. doi:10.1016/S1474-4422(22)00169-7

Major peripheral pulses in the arms and legs are palpated for symmetry and volume (intensity). Elasticity of the arterial wall is noted. Absence of pulses may suggest an arterial disorder (eg, atherosclerosis) or systemic embolism. Peripheral pulses may be difficult to feel in people with obesity or in those who are muscular. The pulse has a rapid upstroke, then collapses in disorders with a rapid runoff of arterial blood (eg, arteriovenous communication, aortic regurgitation). The pulse is rapid and bounding in hyperthyroidism and hypermetabolic states; it is slow and sluggish in hypothyroidism. If pulses are asymmetric, auscultation over peripheral vessels may detect a bruit due to stenosis.

Observation, palpation, and auscultation of both carotid pulses may suggest a specific disorder (see table Carotid Pulse Amplitude and Associated Disorders). Aging and arteriosclerosis lead to vessel rigidity, which tends to eliminate the characteristic findings. In very young children, the carotid pulse may be normal, even when severe aortic stenosis is present.

Auscultation over the carotid arteries can distinguish murmurs from bruits. Murmurs originate in the heart or great vessels and are usually louder over the upper precordium and diminish toward the neck. Bruits are higher-pitched, are heard only over the arteries, and seem more superficial. An arterial bruit must be distinguished from a venous hum. Unlike an arterial bruit, a venous hum is usually continuous, heard best with the patient sitting or standing, and is eliminated by compression of the ipsilateral internal jugular vein.

The peripheral veins are observed for varicosities, arteriovenous malformations (AVMs), and shunts, and for overlying inflammation and tenderness due to thrombophlebitis. An AVM or a shunt produces a continuous murmur (heard on auscultation) and often a palpable thrill (because resistance is always lower in the vein than in the artery during systole and diastole).

The neck veins are examined to estimate venous wave height and waveform. Height is proportional to right atrial pressure, and waveform reflects events in the cardiac cycle; both are best observed in the internal jugular vein.

The jugular veins are usually examined with the patient reclining at 45°. The top of the venous column is normally just above the clavicles (upper limit of normal: 4 cm above the sternal notch in a vertical plane). The venous column is elevated in heart failure, volume overload, cardiac tamponade, constrictive pericarditis, tricuspid stenosis, tricuspid regurgitation, superior vena cava obstruction, or reduced compliance of the right ventricle. If such conditions are severe, the venous column can extend to jaw level, and its top can be detected only when the patient sits upright or stands. The venous column is low in hypovolemia.

Jugular Venous Distention

Зображення

DR P. MARAZZI/SCIENCE PHOTO LIBRARY

Normally, the venous column can be briefly elevated by firm hand pressure on the abdomen (hepatojugular or abdominojugular reflux); the column falls back in a few seconds (maximum 3 respiratory cycles or 15 seconds) despite continued abdominal pressure (because a compliant RV increases its stroke volume via the Frank-Starling mechanism). However, the column remains elevated (> 3 cm) during abdominal pressure in disorders that cause a dilated and poorly compliant RV or in obstruction of RV filling by tricuspid stenosis or right atrial tumor.

Normally, the venous column falls slightly during inspiration as lowered intrathoracic pressure draws blood from the periphery into the vena cava. A rise in the venous column during inspiration (Kussmaul sign) occurs typically in chronic constrictive pericarditis, right ventricular myocardial infarction, and chronic obstructive pulmonary disease (COPD), and can also occur in heart failure and tricuspid stenosis.

Jugular vein waves (see figure Normal jugular vein waves) can usually be discerned clinically but are better seen on the screen during central venous pressure monitoring.

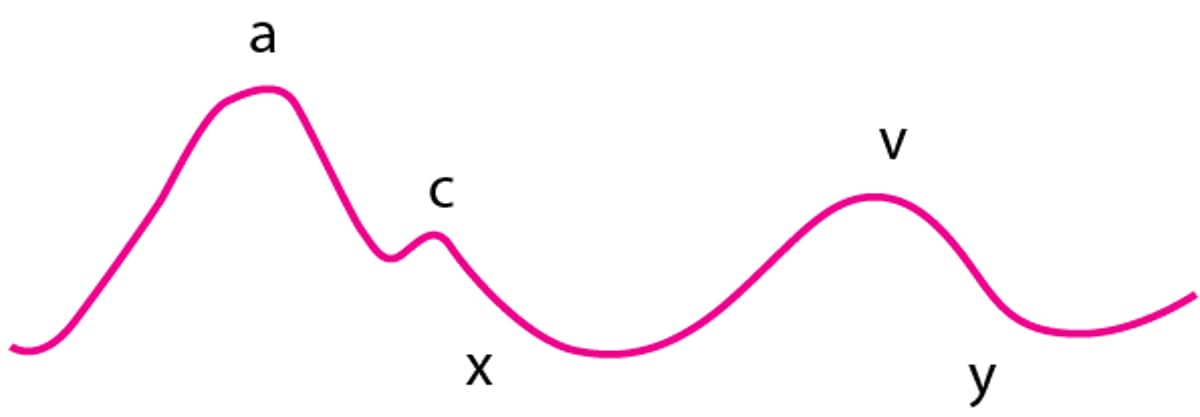

Нормальні хвилі яремної вени

The a wave is caused by right atrial contraction (systole) and is followed by the x descent, which is caused by atrial relaxation. The c wave, an interruption of the x descent, is caused by the transmitted carotid pulse; it is seldom discerned clinically. The v wave is caused by right atrial filling during ventricular systole (tricuspid valve is closed). The y descent is caused by rapid filling of the right ventricle during ventricular diastole before atrial contraction.

The a waves are increased in pulmonary hypertension and tricuspid valve stenosis. Giant a waves (Cannon waves) occur in atrioventricular dissociation when the atrium contracts while the tricuspid valve is closed. The a waves disappear in atrial fibrillation and are accentuated when RV compliance is poor (eg, in pulmonary hypertension or pulmonic stenosis). The v waves are very prominent in tricuspid regurgitation. The x descent is steep in cardiac tamponade. When RV compliance is poor, the y descent is very abrupt because the elevated column of venous blood rushes into the RV when the tricuspid valve opens, only to be stopped abruptly by the rigid RV wall (in restrictive cardiomyopathy) or the pericardium (in constrictive pericarditis).

Chest deformities may occur in a number of disorders.

Shield chest and pectus carinatum (a prominent birdlike sternum) may be associated with Marfan syndrome (which may be accompanied by aortic root or mitral valve disease) or Noonan syndrome (which may be accompanied by pulmonic stenosis, atrial septal defects, or hypertrophic cardiomyopathy). Rarely, a localized upper chest bulge indicates aortic aneurysm due to syphilis.

Pectus excavatum (depressed sternum) with a narrow anteroposterior chest diameter and an abnormally straight thoracic spine may be associated with hereditary disorders involving congenital cardiac defects (eg, Turner syndrome, Noonan syndrome) and sometimes Marfan syndrome.

The patient lays at approximately a 30 to 45 degree angle. Approaching the patient from the right side, the clinician systematically palpates the precordium.

The apical impulse in healthy individuals should be palpable between the 4th and 5th intercostal space just medial to the midclavicular line and cover an area < 2 to 3 cm in diameter.

A central precordial heave is a palpable lifting sensation under the sternum and anterior chest wall to the left of the sternum; it suggests severe right ventricular hypertrophy. Occasionally, in congenital disorders that cause severe RV hypertrophy, the precordium visibly bulges asymmetrically to the left of the sternum.

A sustained thrust at the apex (easily differentiated from the less focal, somewhat diffuse precordial heave of RV hypertrophy) suggests LV hypertrophy.

Abnormal focal systolic impulses in the precordium can sometimes be felt in patients with a dyskinetic ventricular aneurysm. An abnormal diffuse systolic impulse lifts the precordium in patients with severe mitral regurgitation. The lift occurs because the left atrium expands, causing anterior cardiac displacement. A diffuse and inferolaterally displaced apical impulse is found when the LV is dilated and hypertrophied (eg, in mitral regurgitation).

Thrills are a palpable buzzing sensation present with particularly loud murmurs. Their location suggests the cause (see table Location of Thrills and Associated Disorder).

A sharp impulse at the 2nd intercostal space to the left of the sternum may result from exaggerated pulmonic valve closure in pulmonary hypertension. A similar early systolic impulse at the cardiac apex may represent closure of a stenotic mitral valve; opening of the stenotic valve sometimes can be felt at the beginning of diastole. These findings coincide with an augmented 1st heart sound and an opening snap of mitral stenosis, heard on auscultation.

In the abdomen, significant fluid overload manifests as ascites. Marked ascites causes visible abdominal distention, which is tense and nontender to palpation, with shifting dullness on abdominal percussion and a fluid wave. The liver may be distended and slightly tender, with a hepatojugular reflux present.

In the extremities (primarily the legs), fluid overload is manifest as edema, which is swelling of soft tissues due to increased interstitial fluid. Edema may be visible on inspection, but modest amounts of edema in very obese or muscular people may be difficult to recognize visually. Thus, extremities are palpated for presence and degree of pitting (visible and palpable depressions caused by pressure from the examiner’s fingers, which displaces the interstitial fluid). The area of edema is examined for extent, symmetry (ie, comparing both extremities), warmth, erythema, and tenderness. With significant fluid overload, edema may also be present over the sacrum, genitals, or both. Pitting edema is graded on a scale of 1 to 4, but there is no agreed-upon definition for these grades.

Tenderness, erythema, or both, particularly when unilateral, suggests an inflammatory cause (eg, cellulitis or thrombophlebitis). Nonpitting edema is more suggestive of lymphatic or vascular obstruction than fluid overload.
